1993 to 1998 Lincoln Mark VIII Power Steering Pump Removal and Installation

Steering Pump, Power

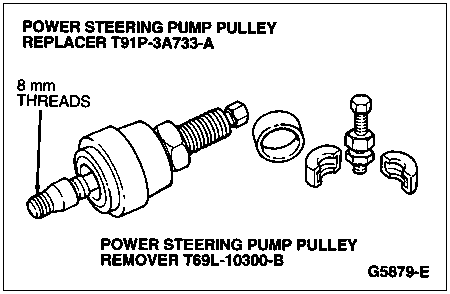

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Steering Pump Pulley Replacer T91P-3A733-A
Steering Pump Pulley Remover T69L-10300-B



Removal

  1. Loosen the tensioner to relieve tension of drive belt (8620), remove power steering pump (3A674) and power steering pump pulley (3A733) as an assembly from the vehicle as outlined.

  1. Place power steering pump and power steering pump pulley as an assembly into vise, clamping on rear mounting legs.

  1.  CAUTION: Do not apply in and out pressure on the power steering pump shaft. Pressure will damage the internal rotating group.

    Install Steering Pump Pulley Remover T69L-10300-B on the pulley hub.





  1. Hold the small hex-head and rotate the tool nut counterclockwise to remove the pulley.

Installation

  1. Place the power steering pump pulley on the power steering pump shaft and install Power Steering Pump Pulley Replacer T91P-3A733-A. The small diameter threads on the tool should be fully engaged in the power steering pump shaft.

  1.  CAUTION: Do not apply in and out pressure on the shaft. Pressure will damage the internal rotating group.

    Hold the small hex-head and rotate the tool nut clockwise to install the power steering pump pulley on the shaft. The power steering pump pulley face must be flush within 0.25 mm (0.010 inch) of the end of the power steering pump shaft.

  1. Remove the tool.

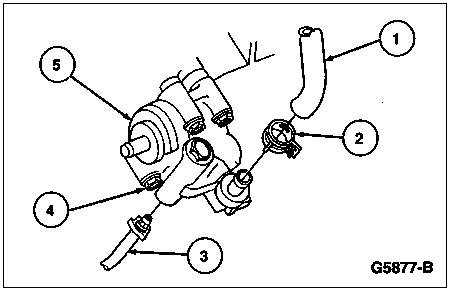

    ItemPart NumberDescription
    1 3691 Power Steering Reservoir Pump Hose
    2 3C750 Clamp
    3 3A719 Power Steering Pressure Hose
    4 N806176-S2 Bolt (4 Req'd)
    5 3A674 Power Steering Pump
