1996 Lincoln Mark VIII Engine Component Diagram

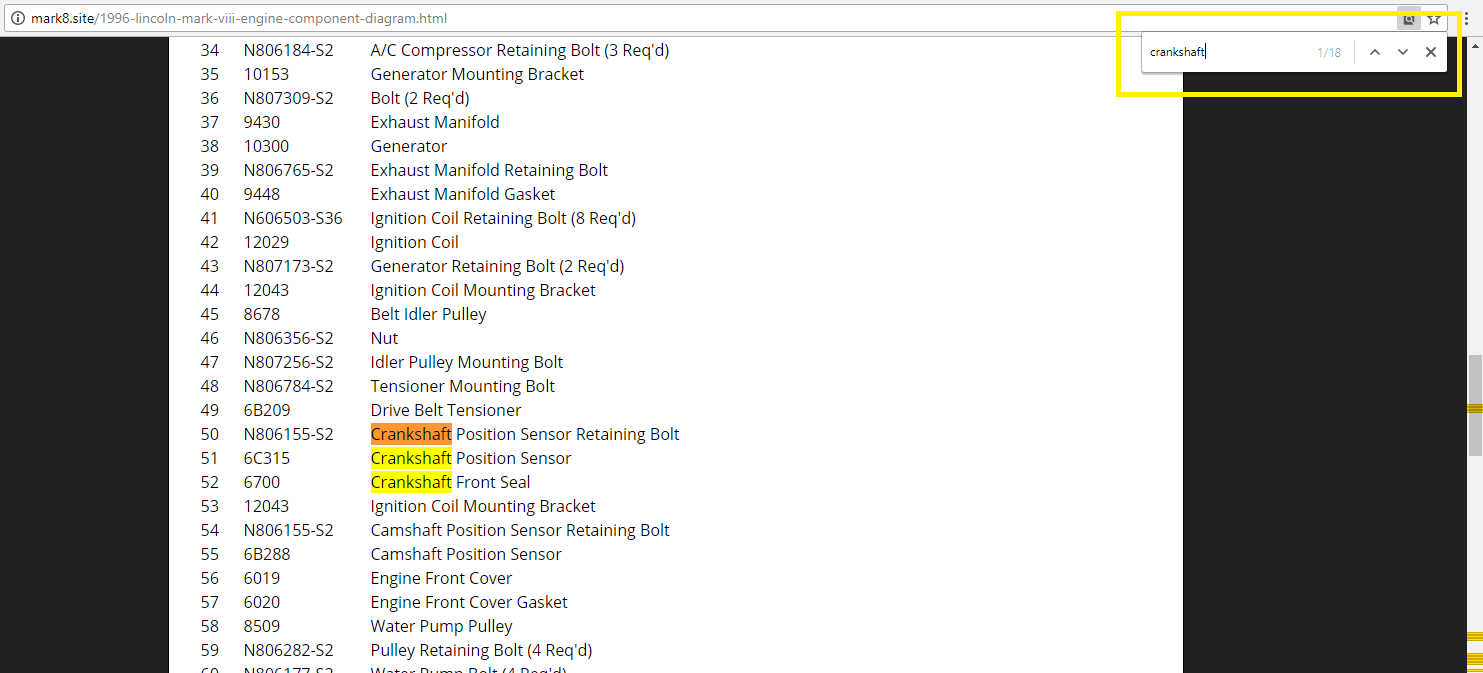

HINT: If using Google Chrome, press F3 then use the page search feature as pictured.



Engine Components

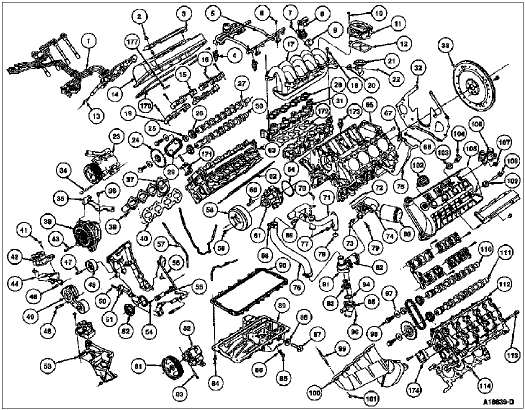

Engine, Disassembled View

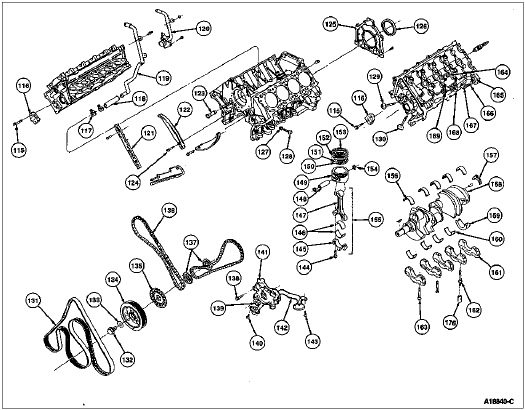

Engine, Disassembled View (Continued)





ItemPart NumberDescription
1 12280 Ignition Wire and Bracket
2 N807370-S100 Nut (8 Req'd)
3 6P068 Ignition Wire Cover
4 9F593 Fuel Injector (8 Req'd)
5 9F792 Fuel Injection Supply Manifold
6 N804394-S8M Bolt (4 Req'd)
7 N806155-S2 Bolt (2 Req'd)
8 9F715 Idle Air Control Valve
9 9F670 Idle Air Control Valve Gasket
10 N806155-S2 Bolt (4 Req'd)
11 9E926 Throttle Body
12 9E936 Throttle Body Gasket
13 12405 Spark Plug (8 Req'd)
14 6582 Valve Cover
15 6B277 Intake Camshaft Cap (4 Req'd)
16 L6293 Camshaft Cap Retaining Bolt
17 9424 Intake Manifold
18 N806156-S2 Intake Manifold Retaining Bolt
19 6B278 Exhaust Camshaft Cap (4 Req'd)
20 9D476 EGR Valve Gasket
21 9D475 EGR Valve
22 N804073-S8 EGR Valve Retaining Bolt (2 Req'd)
23 19703 A/C Compressor
24 6256 Camshaft Sprocket Primary Timing
25 6265 Camshaft Sprocket Spacer (2 Req'd)
26 6256 Camshaft Sprocket Secondary Timing (4 Req'd)
27 6250 RH Intake Camshaft
28 9H486 Intake Manifold Upper Gasket (2 Req'd)
29 6268 Timing Chain
30 6250 RH Exhaust Camshaft
31 9U531 Intake Manifold Runner Control (IMRC) (2 Req'd)
32 7007 Engine Rear Plate
33 6375 Flywheel
34 N806184-S2 A/C Compressor Retaining Bolt (3 Req'd)
35 10153 Generator Mounting Bracket
36 N807309-S2 Bolt (2 Req'd)
37 9430 Exhaust Manifold
38 10300 Generator
39 N806765-S2 Exhaust Manifold Retaining Bolt
40 9448 Exhaust Manifold Gasket
41 N606503-S36 Ignition Coil Retaining Bolt (8 Req'd)
42 12029 Ignition Coil
43 N807173-S2 Generator Retaining Bolt (2 Req'd)
44 12043 Ignition Coil Mounting Bracket
45 8678 Belt Idler Pulley
46 N806356-S2 Nut
47 N807256-S2 Idler Pulley Mounting Bolt
48 N806784-S2 Tensioner Mounting Bolt
49 6B209 Drive Belt Tensioner
50 N806155-S2 Crankshaft Position Sensor Retaining Bolt
51 6C315 Crankshaft Position Sensor
52 6700 Crankshaft Front Seal
53 12043 Ignition Coil Mounting Bracket
54 N806155-S2 Camshaft Position Sensor Retaining Bolt
55 6B288 Camshaft Position Sensor
56 6019 Engine Front Cover
57 6020 Engine Front Cover Gasket
58 8509 Water Pump Pulley
59 N806282-S2 Pulley Retaining Bolt (4 Req'd)
60 N806177-S2 Water Pump Bolt (4 Req'd)
61 8501 Water Pump
62 6051 Head Gasket
63 6049 Cylinder Head
64 391509 O-Ring
65 6010 Cylinder Block
66 N620481-S50 Oil Level Indicator Tube Retaining Nut
67 6750 Oil Level Dipstick
68 8287 Hose Clamp (4 Req'd)
69 12A648 Engine Coolant Temperature Sensor
70 N807309-S2 Water Bypass Tube Retaining Bolt (2 Req'd)
71 8584 Water Bypass Tube
72 6840 Oil Filter Adapter Gasket
73 9278 Oil Pressure Sensor
74 6881 Oil Filter Adapter
75 6754 Oil Level Indicator Tube
76 8A593 Water Bypass Tube to Thermostat Housing Hose
77 10884 Water Temperature Indicator Sender Unit
78 — O-Ring (Part of 8584) (2 Req'd)
79 N806156-S2 Oil Filter Adapter Retaining Bolt (4 Req'd)
80 6714 Oil Bypass Filter
81 3A733 Power Steering Pump Pulley
82 3A674 Power Steering Pump
83 N806176-S2 Power Steering Pump Retaining Bolt
84 W701240-S309 Oil Pan Retaining Bolt (16 Req'd)
85 6730 Oil Pan Drain Plug
86 6734 Oil Pan Drain Plug Gasket
87 6C624 Low Oil Level Sensor
88 6C626 Low Oil Level Sensor Washer
89 6675 Oil Pan
90 6710 Oil Pan Gasket
91 8A587 Upper Thermostat Housing
92 8A595 Upper Thermostat Housing to Oil Filter Adapter Hose
93 8575 Water Thermostat
94 N806807-S Water Thermostat O-Ring
95 18599 Hot Water Heater Elbow Connection
96 N605787-S2 Water Thermostat Housing Bolt (2 Req'd)
97 N806164 Washer
98 N806139 Camshaft Sprocket Retaining Bolt (4 Req'd)
99 N801648-S Exhaust Manifold Stud (8 Req'd)
100 9430 LH Exhaust Manifold
101 N620481-S50 Exhaust Manifold Nut (8 Req'd)
102 6766 Oil Filler Cap
103 6A892 Crankcase Ventilation Grommet
104 6A666 Positive Crankcase Ventilation Valve
105 6582 LH Valve Cover
106 9J459 EGR Vacuum Regulator Solenoid
107 N621926-S36 Nut
108 N807563-S2 Valve Cover Retaining Stud
109 9C519 Valve Cover Retaining Bolt Seal (10 Req'd Each Side)
110 6250 LH Intake Camshaft
111 6250 LH Exhaust Camshaft
112 6049 Cylinder Head
113 6065 Cylinder Head Bolt (10 Req'd Each Side)
114 6051 Head Gasket
115 N606543-S Secondary Timing Chain Tensioner Retaining Bolt (4 Req'd)
116 6L266 Timing Chain Tensioner (2 Req'd)
117 8287 Hose Clamp (2 Req'd)
118 18472 Heater Water Hose
119 18663 Heater Water Outlet Tube
120 18472 Heater Water Hose
121 6K297 Timing Chain Guide (2 Req'd)
122 6L253 Timing Chain Tensioner Arm (2 Req'd)
123 8555 Water Bypass Tube
124 N806070-S Tensioner Arm Retaining Bolt (4 Req'd)
125 6K301 Crankshaft Rear Oil Seal and Retainer
126 6701 Crankshaft Rear Oil Seal
127 6C360 Crankshaft Main Bearing Cap Adjusting Screw (10 Req'd)
128 6C358 Main Cap Side Bolt (10 Req'd)
129 6505 Exhaust Valve
130 6507 Intake Valve
131 8620 Drive Belt
132 N806139-S2 Crankshaft Pulley Bolt
133 N806176-S2 Crankshaft Pulley Bolt Washer
134 6312 Crankshaft Pulley
135 12A227 Crankshaft Position Sensor (CKP) Pulse Wheel
136 6268 Timing Chain (2 Req'd)
137 6306 Crankshaft Sprocket (2 Req'd)
138 N606021-S Oil Pump Retaining Bolt (4 Req'd)
139 87038-S96 O-Ring
140 N605892-S2 Oil Pickup Tube Bolt (2 Req'd)
141 6600 Oil Pump
142 6622 Oil Pump Screen Cover and Tube
143 N605904-S Oil Pump Screen Cover and Tube Bolt
144 6214 Connecting Rod Bolt (16 Req'd)
145 — Connecting Rod Cap (Part of 6200)
146 6211 Connecting Rod Bearing
147 6200 Connecting Rod
148 6135 Piston Pin
149 6108 Piston
150 6159 Piston Oil Ring
151 6161 Piston Oil Ring Spacer
152 6152 Lower Piston Compression Ring
153 6150 Upper Piston Compression Ring
154 6140 Piston Pin Retainer (2 Req'd)
155 6200 Connecting Rod (8 Req'd)
156 6333 Crankshaft Main Bearing
157 6334 Crankshaft Thrust Washer
158 6303 Crankshaft
159 6337 Crankshaft Thrust Main Bearing
160 6333 Crankshaft Main Bearing (4 Req'd)
161 — Main Bearing Cap (5 Req'd) (Part of 6110)
162 6345 Crankshaft Main Bearing Cap Stud (1 Req'd)
163 6K258 Crankshaft Main Bearing Cap Bolt
164 6500 Valve Tappet
165 6564 Rocker Arm
166 6518 Valve Spring Retainer Key
167 6514 Valve Spring Retainer
168 6513 Valve Spring
169 6571 Valve Stem Seal
170 6584 Valve Cover Gasket
171 6K254 RH Secondary Timing Chain Tensioner
172 9461 Intake Manifold Gasket
173 12A699 Knock Sensor
174 6K254 LH Secondary Timing Chain Tensioner
175 9H465 Secondary Air Injection Control Solenoid Vacuum Valve
176 M1A100 Spacer
177 — Valve Cover Seal (8 Req'd)
