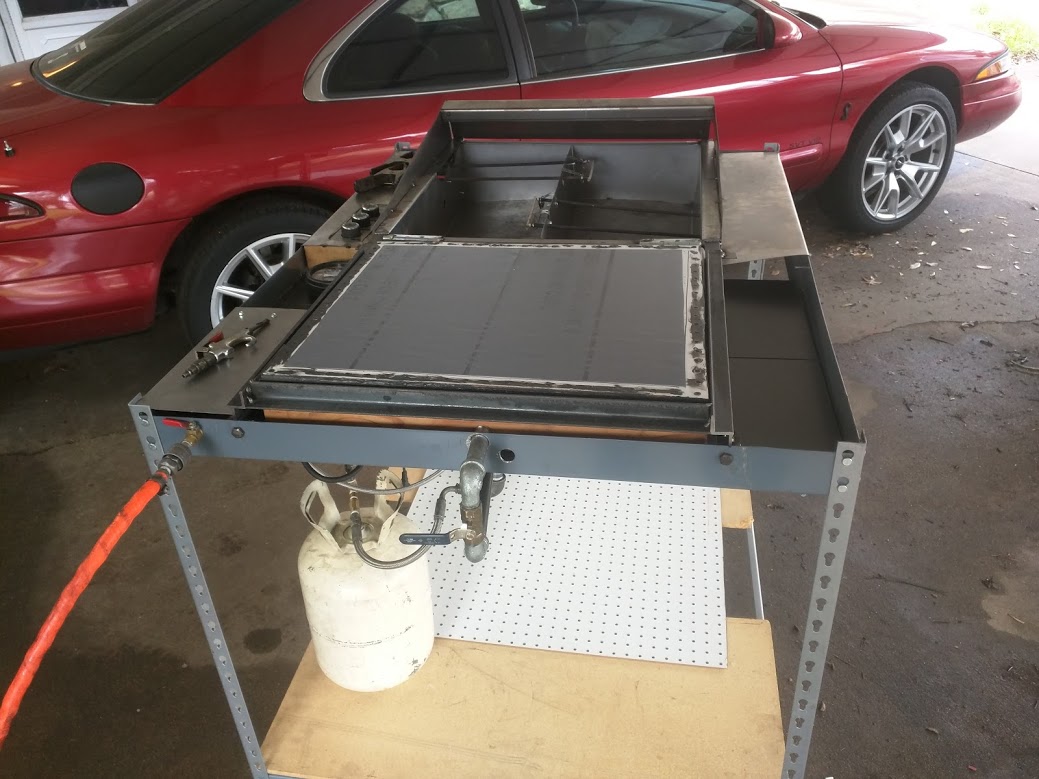

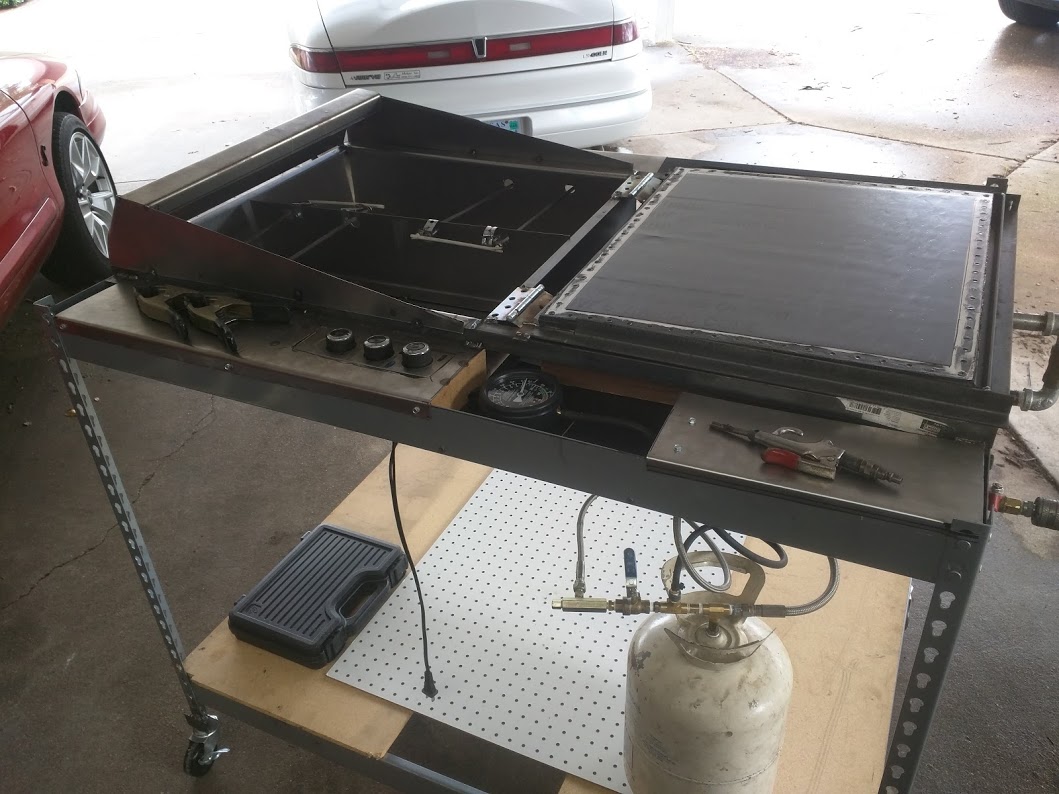

C.A.V.E.S. Vacuum Forming Machine

The C.A.V.E.S.®, or Compressed-Air-Venturi-Effect-System is a machine that has the capability to form up to ¼" by 22" by 22" heated plastics to a mold of choice.

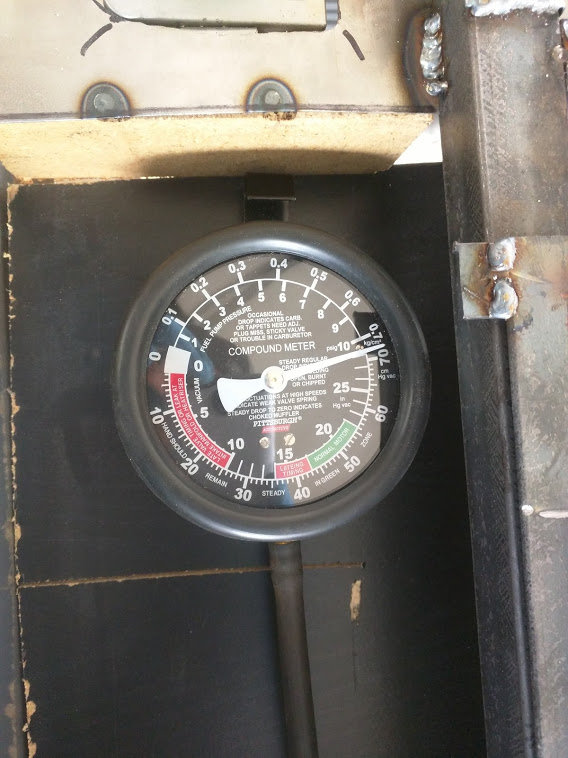

The draw is roughly 8½" and powerful enough to reach a vacuum of 29.4 in/Hg or negative 14.4 psi at the table/platen.

It has a configureable frame with tooling to allow a quick changeout to form smaller sizes.

This system is used for making things like headlight lenses, interior pieces, emblems and much more.

If you need vacuum forming for your project, feel free to contact us for a quote.
